CARTONING SYSTEM

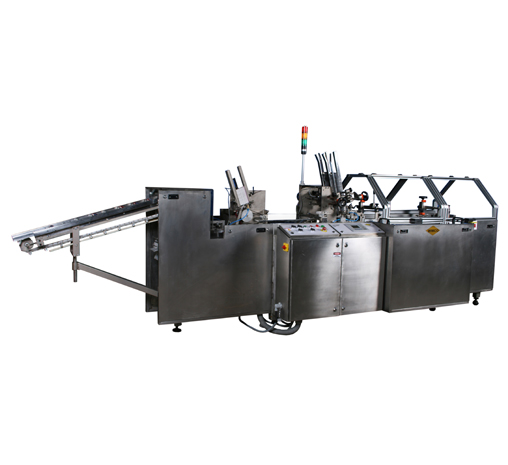

AUTOMATIC CARTON ERECTION & CLOSING MACHINE


  • Features
  • Technical Specification
  • Consumption
  • Features with Machine
  • Machine Weight
  • Optimum speed – 120 Cartons/Minute.
  • Easy & fast changeover.
  • Automatic leaflet insertion device.
  • High level of adaptability for various applications
Carton size range :
  Breadth Height Length
Min.  18 18 85
Max. 84 38 215
POWER CONSUMPTION : AIR CONSUMPTION :
Max.   -  1.5 KW excluding vacuum pump Max. -  100 LPM @ 2 kg/cm2


VACUUM REQUIREMENT - 650-700 mm of Hg.
STANDARD FEATURES WITH MACHINE OPTIONAL FEATURES WITH MACHINE
Automatic carton erection Closing of cartons by hot melt adhesive
Automatic tube feeding Tubular cover – Aluminium or SS 304
Inbuilt check devices Machine interconnections with tube filling machine
Automatic coding on the tubes Electronic product counter & time totaliser
Machine SS 304 guards Flame proofing
Inbuilt centralised lubric Brush insertion

No product no carton

 Automatic leaflet insertion device in carton
No carton product by-pass GMP Version
No leaflet no carton PLC based machine operation
Product overload machine stop Automatic inkjet printing operation
Ejection of empty carton
Designed to handle both reverse & straight cartons
PAC Cartoner - 1,800 KGS


The above specification is subject to change without prior notice

Please contact us for more details
